Multimedia: Use Image Stabilization

Summary: Image stabilization creates sharper pictures by damping vibration to avoid motion blur. Gyroscopic stabilizers steady cameras for sharper photographs and videos.

Vibration is one of the photographer's worst enemies. Slow shutter speeds and telephotos usually don't mix well, often resulting in blurry shots. A stable tripod can help to ensure sharper photographs and videos destined for the Web. But what about situations where a tripod is not an option?

That's where image stabilization comes in.

Once relegated to professional-level cameras, image stabilization technology has trickled down into consumer cameras and lenses. Image stabilized lenses and cameras use tiny gyroscopes to counteract camera motion for sharper shots. If you're buying a new camera look to see if its got image stabilization inside, it could improve your keeper ratio dramatically. To illustrate how effective image stabilization can be, we'll show you an extreme example of aerial photography from a vibrating plane.

What Is Image Stabilization?

Image stabilizers work to give you sharper pictures by counteracting camera shake. Image stabilized lenses and cameras use two tiny gyros that precess with camera movement and send a signal via a servomotor to move lens elements, a prism, or the sensor plane in the opposite direction of your camera's movement. You shake one way, it shakes the other way. Larger gyroscopic stabilizers can steady your entire camera, whether it is optically stabilized or not. For handheld shots with slower shutter speeds or aerial photography, image stabilization is an invaluable tool for damping vibration to minimize motion blur.

Image Stabilization = Smaller Files

Sharper stills and steady videos mean higher quality originals and higher compression ratios. The fewer details per frame and fewer changes between frames, the smaller you can make the file. The sharper your original, the smaller it will be when you optimize it for the Web.

Gyro Stabilized = Sharper Pictures

Unlike optically stabilized lenses which are limited to the same manufacturer (Canon's IS or Nikon's VR series), gyroscopic stabilizers can be used with any camera or binocular (stabilized or otherwise) to ensure sharper pictures and smoother pans. Just hook up a gryo, and the entire mass of your camera and lens will be stabilized. Mass stabilization allows slower shutter speeds for special effects; a crisp car zooming along a blurred road for example.

What's a Gyro Stabilizer?

Gyros consist of a gyroscope with two perpendicular spinning wheels and a battery pack. The gyro attaches to your tripod socket and acts like an "invisible tripod" (see Figure 1).

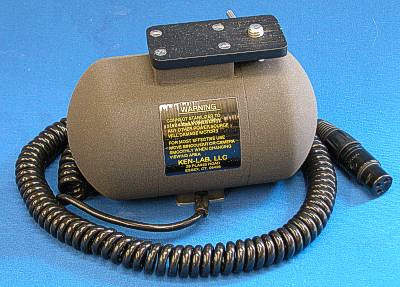

Figure 1: Ken-Lab's KS6 Gyroscopic Stabilizer (used with permission)

Kenyon Laboratories offers precision gyros from 1.5 to over 15 pounds that typically stabilize rigs twice their weight. Unlike in-lens systems sold by Canon, Nikon, Panasonic and others, Ken-Lab gyros stabilize the entire camera and lens along two axes. With two precision wheels spinning at over 22,000 RPM, you can feel the steadying power when you hold one. Adriel Heisey used a custom-made plane and a gyroscopic stabilizer to shoot the images for his books on the Navajo Nation and Sonoran Desert. (see Figure 2).

Figure 2: Adriel Heisey Flying with Gyro-Stabilized Camera (used with permission)

I've found that for aerial shots even at 1/1000 of a second gyro stabilization can make a significant difference in sharpness. Figure 3 shows an example of an aerial shot I took with a Ken-Lab KS6 gyroscope.

Figure 3: Heart Island and Boldt Castle - Alexandria Bay, NY - Uncorrected Scan from a Provia 100/1000 slide, Pentax 67 90mm lens, Ken-lab KS6 Gyroscopic Stabilizer

This picture was taken from a Cessna flying over Boldt Castle near Alexandria Bay, New York. Boldt Castle is a popular tourist attraction in the Thousand Islands. Gyro stabilization made this shot possible. Without stabilization, the vibration from the motor and turbulence would blur this shot, even at high shutter speeds. Zooming in on the castle shows a closer look at the castle walls (see Figure 4).

Stabilized image before and after correction

Boldt Castle, Alexandria Bay, NY - Pentax 67 90mm lens, Ken-lab KS6 Gyroscopic Stabilizer
Figure 4: Boldt Castle - Uncorrected Crop	Figure 5: Boldt Castle - Corrected and Sharpened (100%) Crop

Note in the uncorrected crop that the picture looks somewhat washed out, and needs some sharpening. This is typical behavior with PhotoCD scans. Tweaking the image's levels and curves, and bumping up the saturation, contrast, and sharpening gives the image more punch (see Figure 5).

Drum scans give the highest image density for larger enlargements and higher quality images (150-200+ MB). This shot of one of the Thousand Islands shows what kind of results you can get with a gyroscope and a larger format (see Figure 6).

Figure 6: Thousand Islands, Admiralty Group, near Gananoque, Ontario Canada - Pentax 67 90mm lens, Ken-lab KS6 Gyroscopic Stabilizer

Zooming in on the photo above shows the effects of the gyroscope. You can see individual leaves on the water, and the planks in the dock below (see Figure 7).

Figure 7: Thousand Islands, Crop of Dock and Leaves on Water - Pentax 67 90mm lens, Ken-lab KS6 Gyroscopic Stabilizer

Image Stabilized Lenses

First introduced by Canon in 1993, image stabilized lenses are now appearing in consumer-level cameras. Nikon followed soon after with its "VR" series of lenses, and Panasonic and others now offer image-stabilized digital cameras with high quality lenses (Lumix, etc.). Minolta takes a different tack by moving the image sensor to counteract camera shake. Using these cameras and lenses will improve your photographs, and reduce the number of rejects. The newest models of IS lenses from Canon can even be used on a tripod or atop a gyroscopic stabilizer.

Image stabilization can yield beautifully sharp images at slower shutter speeds. For example, Yann Arthus-Bertrands' "Earth From Above" was shot using Canon IS lenses and Pentax cameras with Velvia ISO 50 film (see Figure 8).

Figure 8: Yann Arthus-Bertrand with Canon IS Lens (used with permission). Photo by Antoine Verdet.

Yann's Earth from Above: 365 Days cover shot of a colorful Yellowstone spring was shot from a helicopter using a Canon image stabilized lens (see Figure 9).

Figure 9: Grand Prismatic Spring, Yellowstone National Park, Wyoming, United States (44Â°26Â¹ N, 110Â°39Â¹ W). Situated on a volcanic plateau that straddles the states of Montana, Idaho, and Wyoming, Yellowstone is the oldest national park in the world. Created in 1872, it covers 3,500 square miles (9,000 km2) and contains the world's largest concentration of geothermic sites, with more than 10,000 geysers, smoking cavities, and hot springs. Grand Prismatic Spring, 370 feet (112 m) in diameter, is the park's largest hot pool in area and third-highest in the world. The color spectrum for which it is named is caused by the presence of cyanobacteria, which grow faster in the hot water at the center of the basin than at the periphery where the temperature is lower. Declared a Biosphere Reserve in 1976 and a UNESCO world heritage site in 1978, Yellowstone National Park receives an average of 3 million visitors per year. The continent of North America, which contains the five most visited natural sites in the world, is visited by more than 80 million tourists per year â€¹ 11% of world tourism in numbers, but 18% of world tourism in revenues. From Yann Arthus-Bertrand's Earth From Above: 365 Days, used with permission.

If you get the urge to take some aerial photographs, here are some tips for sharper shots:

Aerial Photography Tips

Isolate yourself from contacting the aircraft, the only thing that should touch the aircraft is your rear end. Sitting on a pillow or other soft object can help isolate your body from motor and wind vibrations.
Avoid shooting perpendicular to the aircraft's motion. Shooting forward or rearward minimizes the lateral motion.
Use the highest shutter speed you can. 1/500 and above is the rule. The lower in altitude, and the longer your lens the faster your shutter speed.
Use a gyroscopic stabilizer or an image stabilized lens. Even better, combine them for sharper photographs and videos.
Stay loose. Tensing up will transmit more of the aircraft's motion to the camera. Use your arms to isolate your camera from the motion of your body.
Stay out of the slipstream. Keep your camera inside the plane, turbulent air can grab lens shades and shake your shots.
Have the pilot slow down or fly around a fixed point, once you've reached your target. Even better, rent a helicopter for low and slow precision or use a blimp or balloon for a more leisurely flight.
Use a wide angle lens. Wide angle lenses aren't as susceptible to motion blur as telephoto lenses are. However, a stabilized lens (like Canon's 28-135mm IS lens) or a gyro lets you use longer focal lengths to zoom in on your subject.
Use high contrast film. Some aerial photographers use Velvia (now available in 100 ASA) pushed a stop with fast prime lenses, while others use faster slide or print film for higher shutter speeds.
Filter haze aggressively. The higher you go and the more oblique the angle, the more air you must shoot through. Haze is a big problem aloft. Use aggressive haze filtering or warming polarizers for color photography.

Conclusion

Wherever your photography takes you image stabilization can improve your shots dramatically. From street-level to aerial photography image stabilization has become a popular feature for photographers. By adding stabilization to the mix, you'll create smaller and higher quality graphics and videos for the Web.
